iOS大解密之Weak引用

引言

assign与weak有什么区别？面试的时候常常会被问到此问题，我们会回答weak修饰在对象释放时会自动变为nil,那么底层是怎么实现的呢？今天让我们来探讨一下，本文使用的runtime源码为大神提供的可编译版本objc4-706

storeWeak…

与weak相关的操作，应该都调用了次方法，稍后看一下这个方法的实现，首先做一下准备工作

我首先在项目中定义了两个类Person、Like实现如下

@interface Person : NSObject
@property (atomic,weak) Like *like;
- (void)logLikeAddress;
@end

@implementation Person
- (void)logLikeAddress
{
    printf("%p",&_like);
}
@end

// Like其实什么也没实现😂
@interface Like : NSObject
@end
@implementation Like
@end

其中main函数为

void addLike(Person* person)
{
    Like *like = [[Like alloc] init];
    printf("%p\n",like);
    [person logLikeAddress];
    person.like = like;
}

int main(int argc, const char * argv[])
{
    @autoreleasepool {
        // insert code here...
        Person *person = [[Person alloc] init];
        addLike(person);

    }
    return 0;
}

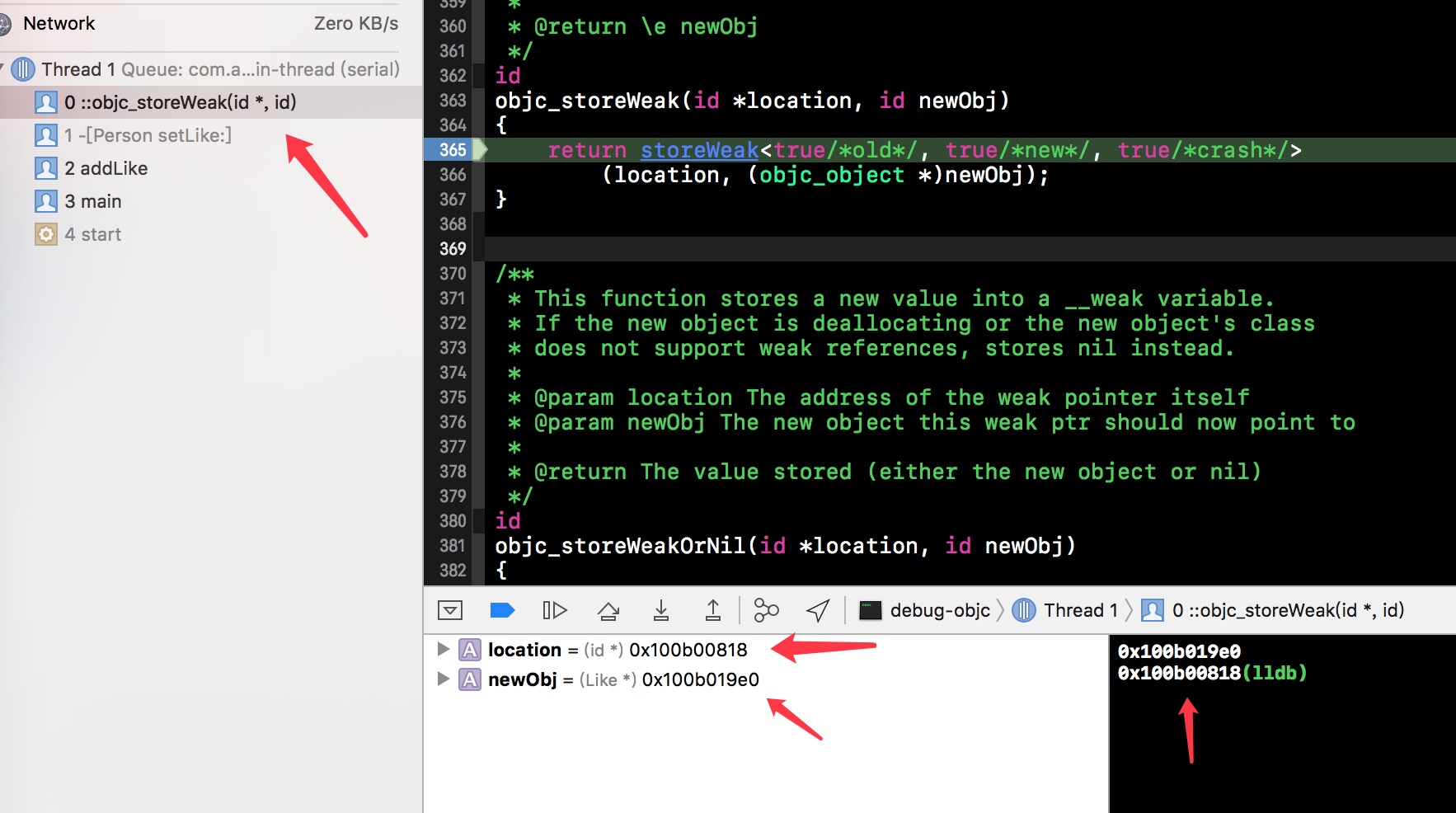

准备工作已经就绪了，我们在Person的中weak修饰的属性下断点，并单步调试，会发现如下的函数调用栈

我们发现了关键的函数objc_storeWeak(...),下面我们要详细的探讨这一函数

template <bool HaveOld, bool HaveNew, bool CrashIfDeallocating>
static id
storeWeak(id *location, objc_object *newObj)
{
    assert(HaveOld  ||  HaveNew);
    if (!HaveNew) assert(newObj == nil);

    Class previouslyInitializedClass = nil;
    id oldObj;
    // 新旧引用表创建
    SideTable *oldTable;
    SideTable *newTable;

    // Acquire locks for old and new values.
    // Order by lock address to prevent lock ordering problems.
    // Retry if the old value changes underneath us.
 retry:
    if (HaveOld) {
        // 获取旧引用表
        oldObj = *location;
        oldTable = &SideTables()[oldObj];
    } else {
        oldTable = nil;
    }
    if (HaveNew) {
        // 获取新引用表
        newTable = &SideTables()[newObj];
    } else {
        newTable = nil;
    }
    // 加锁
    SideTable::lockTwo<HaveOld, HaveNew>(oldTable, newTable);
    // location 应该与 oldObj 保持一致，否则重新获取
    if (HaveOld  &&  *location != oldObj) {
        SideTable::unlockTwo<HaveOld, HaveNew>(oldTable, newTable);
        goto retry;
    }

    // Prevent a deadlock between the weak reference machinery
    // and the +initialize machinery by ensuring that no
    // weakly-referenced object has an un-+initialized isa.
    if (HaveNew  &&  newObj) {
        Class cls = newObj->getIsa();
        if (cls != previouslyInitializedClass  &&
            !((objc_class *)cls)->isInitialized())
        {
            SideTable::unlockTwo<HaveOld, HaveNew>(oldTable, newTable);
            _class_initialize(_class_getNonMetaClass(cls, (id)newObj));

            // If this class is finished with +initialize then we're good.
            // If this class is still running +initialize on this thread
            // (i.e. +initialize called storeWeak on an instance of itself)
            // then we may proceed but it will appear initializing and
            // not yet initialized to the check above.
            // Instead set previouslyInitializedClass to recognize it on retry.
            previouslyInitializedClass = cls;

            goto retry;
        }
    }

    // Clean up old value, if any. 清除旧值
    if (HaveOld) {
        weak_unregister_no_lock(&oldTable->weak_table, oldObj, location);
    }

    // Assign new value, if any. 设置新值
    if (HaveNew) {
        newObj = (objc_object *)weak_register_no_lock(&newTable->weak_table,
                                                      (id)newObj, location,
                                                      CrashIfDeallocating);
        // weak_register_no_lock returns nil if weak store should be rejected

        // Set is-weakly-referenced bit in refcount table.
        if (newObj  &&  !newObj->isTaggedPointer()) {
            // 标记该对象是一个弱引用
            newObj->setWeaklyReferenced_nolock();
        }

        // Do not set *location anywhere else. That would introduce a race.
        *location = (id)newObj;
    }
    else {
        // No new value. The storage is not changed.
    }

    SideTable::unlockTwo<HaveOld, HaveNew>(oldTable, newTable);

    return (id)newObj;
}

在此方法中，我们可以看见一些关键点， SideTable， weak_unregister_no_lock(...)， weak_register_no_lock（...），下面我们会逐一介绍

引用计数和弱引用依赖表 SideTable

SideTable 是一个结构体，主要用于管理对象的引用计数和 weak 表。在 NSObject.mm 中声明其数据结构

struct SideTable {
    //自旋锁
    spinlock_t slock;
    // 引用计数表
    RefcountMap refcnts;
    // 弱引用表
    weak_table_t weak_table;

    SideTable() {
        memset(&weak_table, 0, sizeof(weak_table));
    }

    ~SideTable() {
        _objc_fatal("Do not delete SideTable.");
    }

    void lock() { slock.lock(); }
    void unlock() { slock.unlock(); }

    // Address-ordered lock discipline for a pair of side tables.

    template<bool HaveOld, bool HaveNew>
    static void lockTwo(SideTable *lock1, SideTable *lock2);
    template<bool HaveOld, bool HaveNew>
    static void unlockTwo(SideTable *lock1, SideTable *lock2);
};

对于该结构体中的slock,refcnts,暂时我们不做讨论，我们主要讨论与弱引用相关的weak_table作用，其中weak_table_t的结构如下

struct weak_table_t {
    // 保存了所有指向指定对象的 weak 指针
    weak_entry_t *weak_entries;
    // 存储空间
    size_t    num_entries;
    // 参与判断引用计数辅助量
    uintptr_t mask;
    // hash key 最大偏移值
    uintptr_t max_hash_displacement;
};

这是一个全局弱引用表。使用不定类型对象的地址作为 key ，用weak_entry_t类型结构体对象作为value。其中的weak_entries成员，从字面意思上看，即为弱引用表入口。其实现也是这样的

#define WEAK_INLINE_COUNT 4
#define REFERRERS_OUT_OF_LINE 2
struct weak_entry_t {
    DisguisedPtr<objc_object> referent;
    union {
        struct {
            weak_referrer_t *referrers;
            uintptr_t        out_of_line_ness : 2;
            uintptr_t        num_refs : PTR_MINUS_2;
            uintptr_t        mask;
            uintptr_t        max_hash_displacement;
        };
        struct {
            // out_of_line_ness field is low bits of inline_referrers[1]
            weak_referrer_t  inline_referrers[WEAK_INLINE_COUNT];
        };
    };

    bool out_of_line() {
        return (out_of_line_ness == REFERRERS_OUT_OF_LINE);
    }

    weak_entry_t& operator=(const weak_entry_t& other) {
        memcpy(this, &other, sizeof(other));
        return *this;
    }

    weak_entry_t(objc_object *newReferent, objc_object **newReferrer)
        : referent(newReferent)
    {
        inline_referrers[0] = newReferrer;
        for (int i = 1; i < WEAK_INLINE_COUNT; i++) {
            inline_referrers[i] = nil;
        }
    }
};

让我们回到storeWeak(...)函数中，获取oldTable,与newTable,发现调用的函数为&SideTables()[newObj],&SideTables()[oldObj],其中该方法的实现为

alignas(StripedMap<SideTable>) static uint8_t SideTableBuf[sizeof(StripedMap<SideTable>)];

static void SideTableInit() {
    new (SideTableBuf) StripedMap<SideTable>();
}

static StripedMap<SideTable>& SideTables() {
    return *reinterpret_cast<StripedMap<SideTable>*>(SideTableBuf);
}

template<typename T>
class StripedMap {

    enum { CacheLineSize = 64 };

#if TARGET_OS_EMBEDDED
    enum { StripeCount = 8 };
#else
    enum { StripeCount = 64 };
#endif

    struct PaddedT {
        T value alignas(CacheLineSize);
    };

    PaddedT array[StripeCount];

    static unsigned int indexForPointer(const void *p) {
        uintptr_t addr = reinterpret_cast<uintptr_t>(p);
        return ((addr >> 4) ^ (addr >> 9)) % StripeCount;
    }

 public:
    T& operator[] (const void *p) {
        return array[indexForPointer(p)].value;
    }
    const T& operator[] (const void *p) const {
        return const_cast<StripedMap<T>>(this)[p];
    }
};

在上面我们可以看出StripedMap是一个模板类（Template Class），通过传入类（结构体）参数，会动态修改在该类中的一个 array 成员存储的元素类型，并且其中提供了一个针对于地址的 hash 算法，用作存储key。可以说， StripedMap 提供了一套拥有将地址作为 key 的 hash table 解决方案，而该方案采用了模板类，是拥有泛型性的,在这个类中有一个 array 成员，用来存储 PaddedT 对象，并且其中对于 [] 符的重载定义中，会返回这个 PaddedT 的 value 成员，这个 value 就是我们传入的 T 泛型成员，也就是 SideTable 对象。在 array 的下标中，这里使用了 indexForPointer 方法通过位运算计算下标，实现了静态的 Hash Table。而在 weak_table 中，其成员 weak_entry会将传入对象的地址加以封装起来，并且其中也有访问全局弱引用表的入口

weak_register_no_lock(…)

该方法将弱引用对象注册到弱引用表中，我们看一下它的具体实现

id
weak_register_no_lock(weak_table_t *weak_table, id referent_id,
                      id *referrer_id, bool crashIfDeallocating)
{
    // weak对象的引用 即like
    objc_object *referent = (objc_object *)referent_id;
    // 指向weak对象的引用的指针 即Person对象中的&like 可理解为&(person.like)
    objc_object **referrer = (objc_object **)referrer_id;

    //判断TaggedPointer
    if (!referent  ||  referent->isTaggedPointer()) return referent_id;

    // ensure that the referenced object is viable 保证对象是可以访问的
    bool deallocating;
    if (!referent->ISA()->hasCustomRR()) {
        deallocating = referent->rootIsDeallocating();
    }
    else {
        BOOL (*allowsWeakReference)(objc_object *, SEL) =
            (BOOL(*)(objc_object *, SEL))
            object_getMethodImplementation((id)referent,
                                           SEL_allowsWeakReference);
        if ((IMP)allowsWeakReference == _objc_msgForward) {
            return nil;
        }
        deallocating =
            ! (*allowsWeakReference)(referent, SEL_allowsWeakReference);
    }

    if (deallocating) {
        if (crashIfDeallocating) {
            _objc_fatal("Cannot form weak reference to instance (%p) of "
                        "class %s. It is possible that this object was "
                        "over-released, or is in the process of deallocation.",
                        (void*)referent, object_getClassName((id)referent));
        } else {
            return nil;
        }
    }

    // now remember it and where it is being stored
    weak_entry_t *entry;
    if ((entry = weak_entry_for_referent(weak_table, referent))) {
        append_referrer(entry, referrer);
    }
    else {
        // 该对象第一次插入
        weak_entry_t new_entry(referent, referrer);
        // 是否需要扩容表长度
        weak_grow_maybe(weak_table);
        // 插入表
        weak_entry_insert(weak_table, &new_entry);
    }

    // Do not set *referrer. objc_storeWeak() requires that the
    // value not change.

    return referent_id;
}

总结一下，我们weak对象的引用,与指向weak对象的引用，传入此函数中，假设是首次保存此weak对象的引用，构建出weak_entry_t的实例
new_entry,判断当前的弱引用表是否需要增加长度，然后将new_entry插入到弱引用表weak_table中；如若不是第一次保存，首先取出旧的entry，并将指向weak对象的引用（即&(person.like)）保存在entry中。
所以可以看出，一个entry中保存了所有指向该weak对象的弱引用

weak_unregister_no_lock(…)

void
weak_unregister_no_lock(weak_table_t *weak_table, id referent_id,
                        id *referrer_id)
{
    objc_object *referent = (objc_object *)referent_id;
    objc_object **referrer = (objc_object **)referrer_id;

    weak_entry_t *entry;

    if (!referent) return;

    if ((entry = weak_entry_for_referent(weak_table, referent))) {
        remove_referrer(entry, referrer);
        bool empty = true;
        if (entry->out_of_line()  &&  entry->num_refs != 0) {
            empty = false;
        }
        else {
            for (size_t i = 0; i < WEAK_INLINE_COUNT; i++) {
                if (entry->inline_referrers[i]) {
                    empty = false;
                    break;
                }
            }
        }

        if (empty) {
            weak_entry_remove(weak_table, entry);
        }
    }

    // Do not set *referrer = nil. objc_storeWeak() requires that the
    // value not change.
}

其中该方法就是remove_referrer(entry, referrer);,在entry中移除了referrer,弱引用表中不再保存指向该weak对象的引用

weak对象释放

我们可以看见当一个被弱引用指向的对象释放时，会调用weak_clear_no_lock(...)方法

void
weak_clear_no_lock(weak_table_t *weak_table, id referent_id)
{
    objc_object *referent = (objc_object *)referent_id;

    weak_entry_t *entry = weak_entry_for_referent(weak_table, referent);
    if (entry == nil) {
        /// XXX shouldn't happen, but does with mismatched CF/objc
        //printf("XXX no entry for clear deallocating %p\n", referent);
        return;
    }

    // zero out references
    weak_referrer_t *referrers;
    size_t count;

    if (entry->out_of_line()) {
        referrers = entry->referrers;
        count = TABLE_SIZE(entry);
    }
    else {
        referrers = entry->inline_referrers;
        count = WEAK_INLINE_COUNT;
    }

    for (size_t i = 0; i < count; ++i) {
        objc_object **referrer = referrers[i];
        if (referrer) {
            if (*referrer == referent) {
               //weak指向的对象，在释放时会被置nil的关键
                *referrer = nil;
            }
            else if (*referrer) {
                _objc_inform("__weak variable at %p holds %p instead of %p. "
                             "This is probably incorrect use of "
                             "objc_storeWeak() and objc_loadWeak(). "
                             "Break on objc_weak_error to debug.\n",
                             referrer, (void*)*referrer, (void*)referent);
                objc_weak_error();
            }
        }
    }

    weak_entry_remove(weak_table, entry);
}

如方法中，通过referent,找到保存指向该对象的所有引用的实例entry，通过循环，将entry中的所有引用置为nil即可

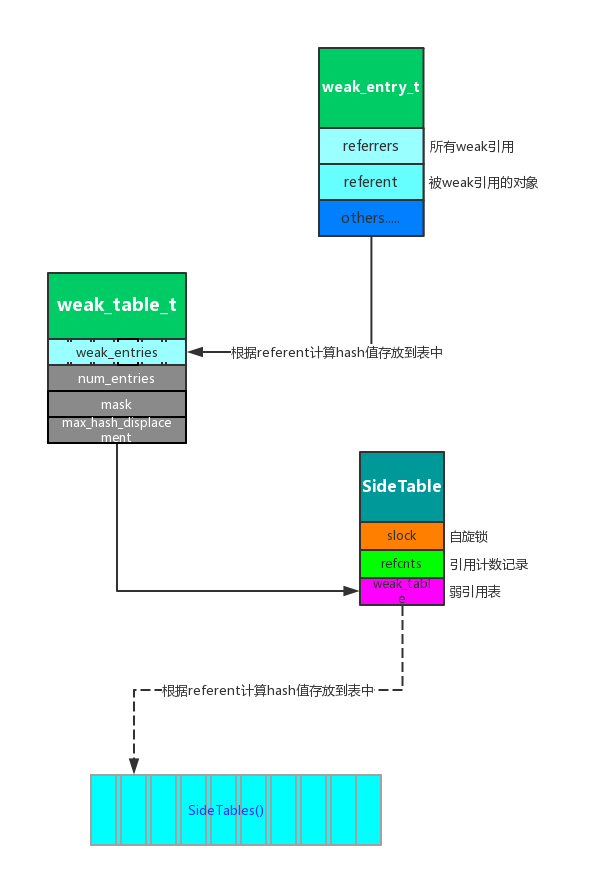

weak引用表图解
